For Scanning Electron Microscopes (SEM), we offer a complete SEM/EDX system: SDD detector, digital signal processor and software. Our all-inclusive, high-end, Windows®-10 based software suite – Iridium Ultra – features a myriad of spectra, mapping, imaging, and advanced automation and analysis tools. IXRF Systems’ SEM/EDS packages deliver premium detector technology as well as both industry-leading and unique (to IXRF) features. No-cost software upgrades are included for the life of the system, so the analyst is never out of date.

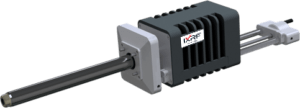

Silicon Drift Detectors (SDD) are available with a choice of window materials, from Beryllium (8µm) to Thin Polymer (for light element x-ray transmission). Sensor active areas of 10mm² to 100mm² are offered. In addition, all or our SDD versions are vibration free.
IXRF’s range of electronically cooled (LN2 free) SDD are optimized when coupled with an innovative Ethernet-based digital pulse processor. Our SDD detectors provide exceptional and stable performance over a wide range of input count rates.
Our Model 550i SEM/EDS digital electronics are optimized for true “data streaming” and ultra-fast X-ray processing. System incorporates Active Imaging combined with Digital Signal Processor (DSP) and a 4096 multi-channel analyzer (MCA).
550i Digital Pulse Processor
IXRF customers never pay for software upgrades! It’s our thanks for analyzing with us. New feature developments are made available, at no cost, for existing primary customers for the life of their system. We have carried our customers through Windows 3.11, 2000, NT, XP, Vista, and now Windows 7/8/10 at no additional charge to anyone in any country!
microXRF X-ray sources for Scanning Electron Microscopes (SEM): addition of an polycapillary X-ray tube and Iridium Ultra software will transform your SEM’s quantitative analytical capabilities. Higher peak to background ratios enable greater elemental sensitivity for higher Z elements: sensitivity exceeding e–-beam excitation by a factor of 10-1000X.
- Identifying Elements
- Spectrum Processing
- Spectrum Overlay
- Spectrum Reporting
Kα energy markers help easily identify elemental peaks.
Identify elements through cursor ID by selecting individual energy channels.
Automatic peak identification feature.
• Peak separation using Gaussian deconvolution.
• Automatic peak-overlap correction.
• Automatic escape and sum peak removal.
• Automatic standardless quantification using ZAF.
Selecting Annotations from the spectrum toolbar opens a new window that allows the user to measure, label, add text, etc. on the spectrum. These annotations are fully customizable and can be exported with the spectrum.
SEM/EDS Spectrum Overlay
Spectra can be overlaid to easily compare the relative compositions in samples.
Create spreadsheet reports from multiple spectra’s quantitative analysis results.
- Image Acquisition
- Analysis Suite (Toolbar)
SEM/EDX Direct Acquire
The Direct Acquire tools allow for EDS data to be collected by selecting the region of interest from the SEM image. This includes spot/rectangle/free hand spectra as well as maps and linescans on the image.
Multipart Acquire allows fully automated spectrum analysis with customized EDS settings and automatically generated spectrum analysis reports. This includes single point, raster area, and freehand line spectrum acquisition.
Image Segmentation provides a visual representation of different phases in an image. Based upon histogram analysis, you can see the percent area each phase occupies.
Image Morphology provides particle information through image binarization. Image binarization transforms the image into grayscale based upon histogram data. This allows you to label and measure pixels to provide an abundance of morphological data.
Image and Map stitching allow for acquisition of images/maps over a large area. This is done by moving the stage (automatically or manually) to adjacent fields, forming a grid of images/maps from the data acquired at each field. This grid of images/maps can be stitched together into a single image/map file.
RoboStage allows unattended acquisition of multiple EDS data from anywhere on the microscope’s stage using the existing stage automation for the microscope to position the stage for each EDS data acquisition. Data are automatically saved in either individual data files or an EDS Dataset file.
- Mutielement Quantitative Mapping
- Overlay Maps
- Map Analysis Suite (Toolbar)
- Extract Spectra (Freehand, Spot, Area)
- Extract Linescan
- DataView (Intensity/Concentration)
- Beam Drift Correction
- Maximum Pixel Spectrum
- Map stitch & montage
- Automate Stage and Beam automation
- Composition Mapping
- Phase Analysis
Selecting Annotations from the Map toolbar opens a new window that allows the user to measure, label, add text, etc. on the map.
SEM/EDS: Spectra from Map
Combine X-Ray Map pixels to extract spectra from a region of interest
SEM/EDX Intensity Maps
Selecting Element Intensities from the Map tab will open a new window. A spot/rectangle/freehand can be placed on the image to compare the intensity/concentration.
SEM/EDS Phase Maps
Selecting Phase Maps from the Map tab will identify different phases within a sample and quantitatively analyze the elements within each phase.
The different phases will be graphically displayed in a map alongside phase-specific overlaid spectra to provide a qualitative comparison.
SEM/EDX Ratio Maps
Analyze the element ratios in a region of interest and displays a comparison of element weight percent ratios.
Selecting Composition Mapping from the Map tab will identify map locations containing specific element concentrations according to specified parameters.
Quantitative analysis is performed on every pixel where a calculated concentration is compared to a specified concentration. Matching pixels are then displayed in the composition map.
SEM/EDX Quantitative Element / Phase Maps
Quantitative Maps convert the displayed pixel data to Concentration (wt%) from Intensity (cps). This feature can display the quantitative maps as either elemental maps or components maps (ie; oxides).
- Multielement Linescan Acquisition
- Linescan Overlay
- DataView (Intensity/Concentration)
SEM/EDS Multielement Scan
In SEM/EDS, X-ray linescans are excellent tools for determining the location of phases, particles, and other features on a sample that can be discriminated by variations in elemental composition. An X-ray linescan is performed by acquiring XRF data at evenly spaced points along a horizontal line on the sample. The intensity or concentration data are displayed on the screen as line graphs, one for each element in the element list for the linescan.
SEM/EDX Overlay Scans
In SEM/EDX, linescans can be combined and overlaid on the SEM image using the View/Overlay Linescans menu item. Click on the Overlay On Image button to copy the combined graph onto the image. At right is an example of a graph overlaid on the image as an annotation. The graph can be moved, sized, and deleted using the Edit/Annotations panel for the image. The graph can be moved, but will always retain its alignment to the location that the linescan was acquired.
Select View/Intensities Concentrations from the menu to inspect the x-ray data at individual points on the linescan. This insert panel will appear. Click anywhere on a linescan to select a point to inspect the X-ray intensities, as shown. The panel now displays a histogram of the intensity of each element at the selected point. Selecting Concentration in the panel will apply ZAF corrections to the intensities and re-display the histogram with the calculated values as weight percent.
MultiScan acquires multiple scans of the line of the linescan. The scans are summed together, producing ever-increasing quality in the linescan as the scans are acquired. MaxScans is the maximum number of scans that will be acquired. The acquisition can be stopped at any time, allowing the user to determine when the linescans are of sufficient quality. The advantages of performing the linescan with MultiScan are: 1.) the linescan can be stopped at any time, and 2.) sample charging effects are minimized due to the rapid movement of the beam over the line being acquired.
Energy Dispersive X-ray Spectroscopy (SEM/EDS)
Energy-dispersive X-ray spectroscopy (EDS, EDX, EDXS or XEDS), sometimes called energy dispersive X-ray analysis (EDXA) or energy dispersive X-ray microanalysis (EDXMA), is an analytical technique used for the elemental analysis or chemical characterization of a sample. It relies on an interaction of some source of X-ray excitation and a sample. Its characterization capabilities are due in large part to the fundamental principle that each element has a unique atomic structure allowing a unique set of peaks on its electromagnetic emission spectrum (which is the main principle of spectroscopy). The peak positions are predicted by the Moseley’s law with accuracy much better than experimental resolution of a typical EDX instrument.
SEM/EDX Theory of Operation
Energy Dispersive X-Ray Spectroscopy (EDS or EDX) is a chemical microanalysis technique used in conjunction with scanning electron microscopy (SEM). The EDS technique detects x-rays emitted from the sample during bombardment by an electron beam to characterize the elemental composition of the analyzed volume. Features or phases as small as 1 µm or less can be analyzed.

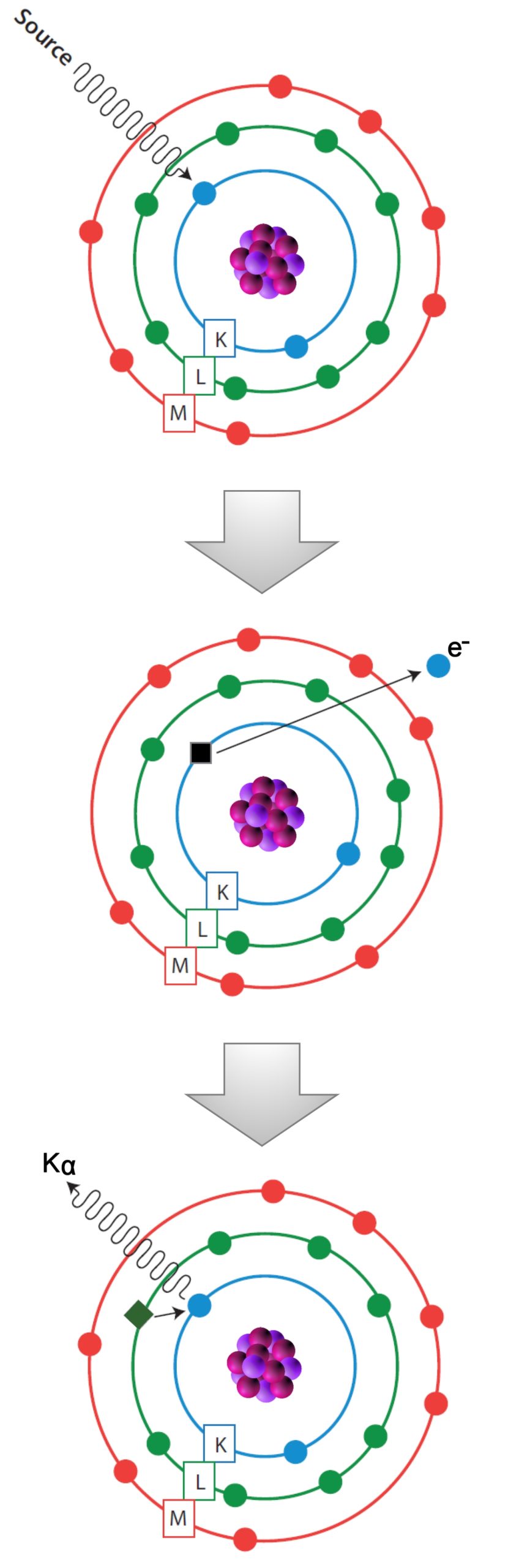

When a sample is bombarded by a SEM’s electron beam (top image), inner shell electrons may be ejected from atoms at the sample’s surface (center image). The energy of the SEM electron (e–) beam must be greater than the energy with which the inner shell electron is bound to the nucleus of the atom. When an inner orbital electron is ejected from an atom, an electron from a higher energy level orbital will be transferred to the lower energy level orbital. During this transition a photon may be emitted from the atom. This fluorescent light (Kα) is the characteristic X-ray of the element (bottom image). The energy of the emitted photon will be equal to the difference in energies between the two orbitals occupied by the electron making the transition. Because the energy difference between two specific orbital shells, for a given element, is always the same (i.e. characteristic of that particular element), the photon emitted when an electron moves between these two levels will always have the same energy. Therefore, by determining the energy (keV) of the X-ray light (photon) emitted by a particular element, it is possible to determine the identity of that element.
For a particular energy (keV) of fluorescent light emitted by an element, the number of photons per unit time (generally referred to as peak intensity or count rate) is related to the amount of that analyte in a sample. The counting rates for all detectable elements within a sample are usually calculated by counting, for a set amount of time, the number of photons that are detected for the various analytes’ characteristic X-ray energy lines. Therefore, by determining the energy of the X-ray peaks in a sample’s spectrum, and by calculating the count rate of the various elemental peaks, it is possible to qualitatively establish the elemental composition and to quantitatively measure the concentration of those elements.
The EDS X-ray sensor measures the relative abundance of emitted X-rays versus their energy. Today sensors are typically Peltier-cooled, solid-state silicon drift detector (SDD) devices. When an incident X-ray strikes the detector, it creates a charge pulse that is proportional to the energy of the x-ray. The charge pulse is converted to a voltage pulse (which remains proportional to the x-ray energy) by a charge-sensitive pre-amplifier. The signal is then sent to a multichannel analyzer where the pulses are sorted by voltage. The energy, as determined from the voltage measurement, for each incident X-ray is sent to a computer for display and further data evaluation. The spectrum of x-ray energy versus counts is evaluated to determine the elemental composition of the sampled volume.
On-line SEM/EDS Microanalysis Course

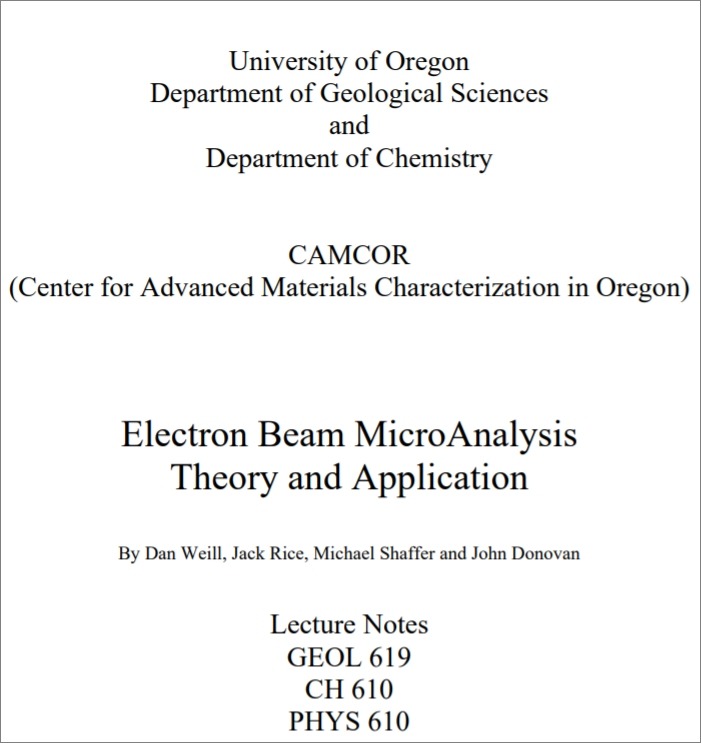

Electron Probe Micro Analysis Course Materials
