microXRF X-ray sources for Scanning Electron Microscopes (SEM): addition of an polycapillary X-ray tube and Iridium Ultra software will transform your SEM’s quantitative analytical capabilities. Higher peak to background ratios enable greater elemental sensitivity for higher Z elements: sensitivity exceeding e-beam excitation by a factor of 10-1000X. Exceptional beam stability, together with a modern SDD X-ray detector, afford higher precision with ppm-level sensitivity. Non-conductive materials may be analyzed without any special preparation or coating. We integrate with your SEM to deliver full spectrum analysis using excitation from both the e-beam and our X-ray source.

download a brochure

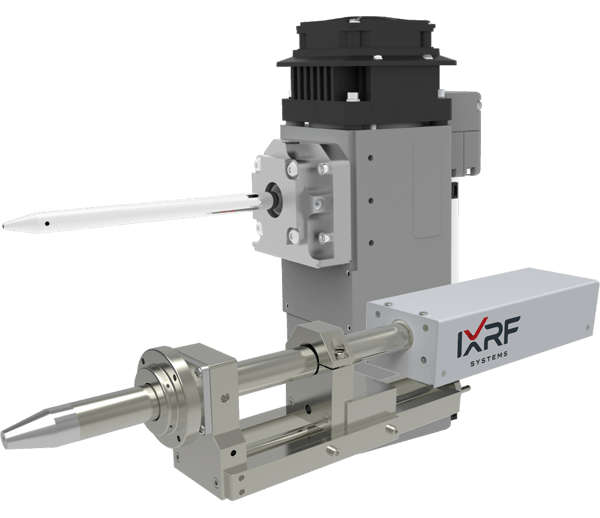

IXRF’s Xb micro-spot X-ray source adds the capabilities of a complete micro X-ray fluorescence (microXRF) spectrometer to a scanning electron microscope (SEM). Xb fits on an unused or open high-angle port of almost any SEM. Total non-destructive, μXRF users benefit from both superior trace element sensitivity and broader elemental coverage (Na through U using K- and L-lines) .

Advanced microXRF system for SEM

  • Distribution analysis stores complete spectra for every map point for on- and off-line analysis
  • Samples can be analyzed with μXRF and e-beam simultaneously without position change
    • Both excitation methods are integrated in our analytical software suite – Iridium Ultra
  • No interference with normal SEM operation, Xb can stay in its measurement position
  • microEDXRF is completely non-destructive and does not require the sample to be coated
  • Use your existing EDS detector system; we support most all microscopes

A complete microXRF spectrometer without the investment

  • Analytical results compare to those of standalone μXRF systems
  • State-of-the-art analytical software based on decades of continuous improvement
  • Selectable primary X-ray filters to suppress Bremßtrahlung and diffraction peaks
    • For lower detection limits, down to PPM levels for most elements

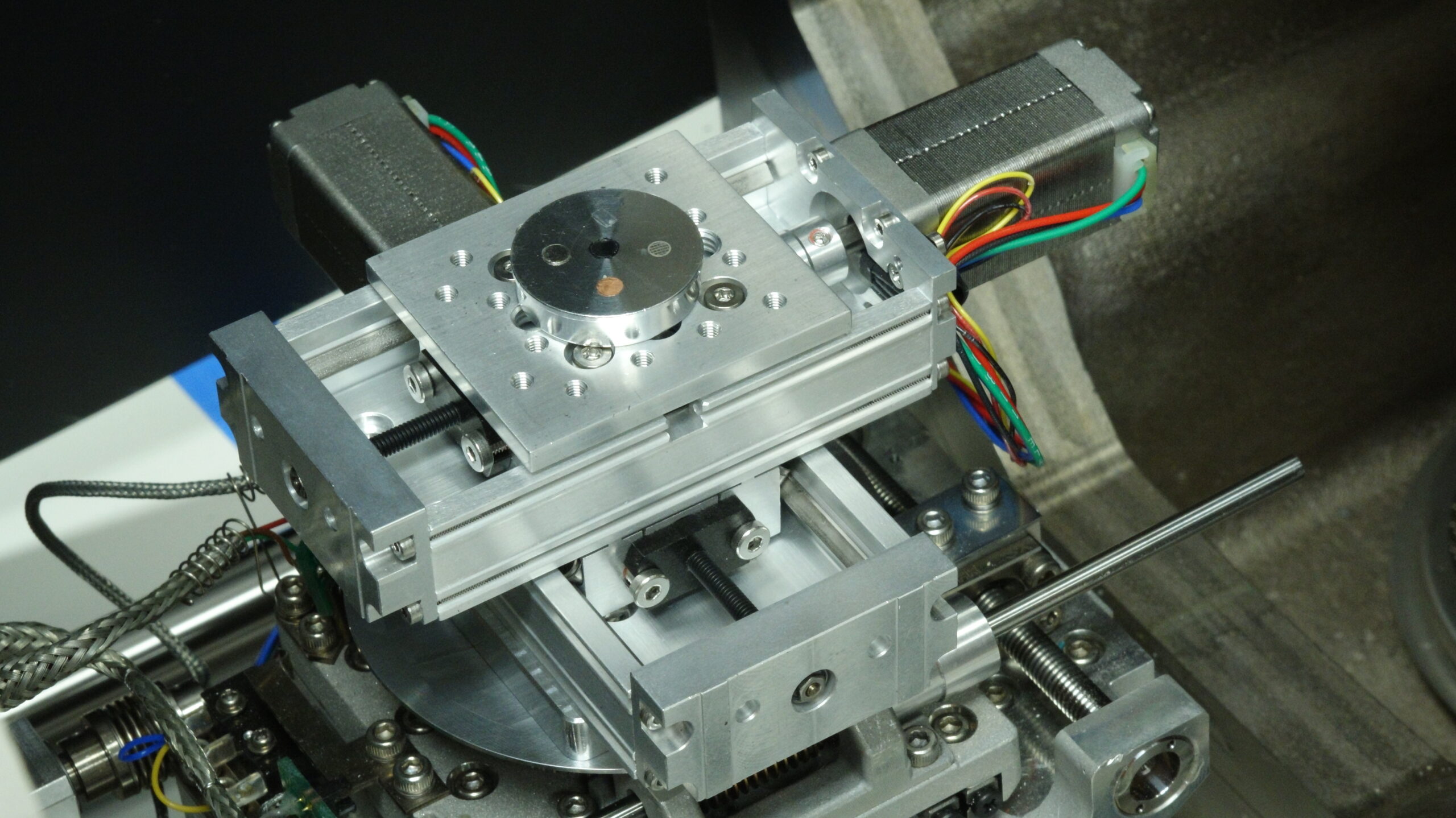

  • Uses your scanning electron microscope’s motorized stage
  • Allows sample tilt to produce minimum spot sizes
  • No special cooling is required, our sources are air cooled

Xb Product Features

IXRF’s Xb custom micro-spot X-ray source is designed exclusively for use on electron microscopes.  A compact design with slide mounting allow very close coupling to the sample. Patented polycapillary optics focus X-ray  photons down to sample spot size as small as 10µ. Xb is offered in 10µm and 40µm spot sizes. An integrated high-voltage power supply operates up to a maximum power of 50 watts (35-50 kV and 1.0 mA depending on anode material). Close coupling provides XRF analytical results comparable to those from traditional “’benchtop EDXRF” or “mainframe” XRF instruments.  An additional benefit is that the Xb X-ray source is designed so that it does not interfere with the normal operation of the electron microscope, including the use of the electron beam on the same sample at the same time so as to simultaneously collect data on all elements.

microEDXRF advantage: quantify trace elements

Electron beams (from scanning electron microscopes) produce very high backgrounds, hiding trace elements in a sample. Direct X-ray excitation from a true “X-ray source” don’t have this effect. Using IXRF’s Xb, low ppm levels of elements can be easily identified, quantified … even producing trace level X-ray maps to view elemental distribution of trace elements in your sample. For elements above Na, limits of detection (LOD) can be as low as 10 ppm, depending on element and matrix.

microEDXRF advantage: broad elemental coverage

X-ray excitation up to 50 kV, together with a variety of available primary filters, allows for high-sensitivity analysis of first and second row transition metals (using K-lines). Even heavier elements may be similarly analyzed using their L-lines.

X-ray source

Product Specifications

Xb

ANODE TYPE

Side-window

TARGET MATERIAL

Ag, Cu, Mo, Rh & W

ACCELERATING VOLTAGE

0-50 kV

BEAM CURRENT

Max 1 mA

EXCITATION SPOT SIZE

10, 20, 40 µm

COLLIMATOR SIZE

Patented polycapillary focusing optic

SOURCE FILTERS

Available upon request

COOLING REQUIREMENTS

Air cooled (fan)

CONTROLS/SAFETY

Variable control kV/µA, X-ray on/off buttons, kV/µA display, internal interlocked shutter. Interlocked to SEM, keyed power-on switch, HV-On lamp, warning beacon

ƒX Product Features

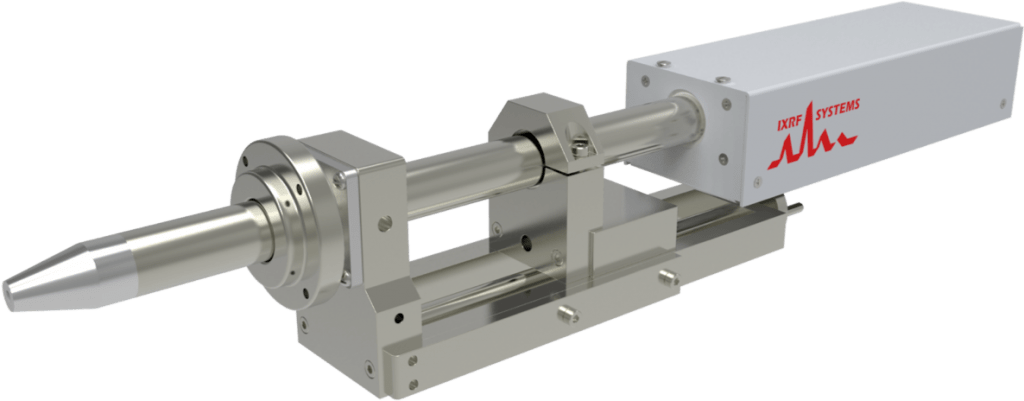

IXRF’s new ƒX SEM™  is an affordable, air-cooled custom X-ray source option designed exclusively for use on electron microscopes.  With a compact design and slide mounting, very close coupling to the sample is achieved. This unique design delivers “high flux” X-rays to small or large excitation areas on a sample’s surface. The ƒX SEM™ offers excitation spots ranging from 500 µm to 25 mm (ellipse minor side width). The integrated high-voltage power supply operates up to a maximum power of 10 W (35 kV and 0.1 mA depending on anode material). Close coupling provides X-ray fluorescence (XRF) spectrometry analytical results comparable to those from a traditional benchtop EDXRF operating under a vacuum atmosphere. The ƒX SEM™ is designed so that it does not interfere with the normal operation of the electron microscope, including the use of the electron beam on the same sample, at the same time collecting all elements simultaneously.

XRF advantage: quantify and map trace elements

Electron beams (from scanning electron microscopes) produce very high backgrounds hiding the trace elements in the sample. X-rays, from a true “X-ray source” don’t have this effect. Using the ƒX SEM™ low ppm levels of elements can be easily identified and quantified … even producing trace level X-ray maps to view elemental distribution of trace elements in your sample.

Product Specifications

ƒX

ANODE TYPE

End-window transmission

TARGET MATERIAL

Ag, Mo & W

ACCELERATING VOLTAGE

10-35 kV

BEAM CURRENT

0-100 µA

COLLIMATOR SIZE

200, 500 and 1000 µm (others available)

SOURCE FILTERS

Available upon request

COOLING REQUIREMENTS

Conduction cooled, no fan required

CONTROLS/SAFETY

Variable control kV/µA, X-ray on/off buttons, kV/µA display. Interlocked to SEM, keyed power-on switch, Integrated high-voltage power supply, HV-On lamp, warning beacon

The chief component of X-ray Fluorescence brought into the SEM chamber is a low powered transmission target X-ray tube. The tubes are reduced in size and produce less heat than larger, higher powered tubes. Mo, W and Ag thin film targets deposited on a Be window are available for varying applications.

X-ray tube additions may be interfaced to almost any SEM. High angle (35deg) as well as horizontal flange mounts are available for every tube package.

Packaged tubes may be operated up to 50kV and come with integral high voltage power supplies. Power supplies are integrated with interlocking vacuum sensors which shut off the x-rays when the SEM chamber is vented. Each unit automatically “ramps” the tubes for increased longevity.

The addition of focusing capillary optics enables microspot XRF analysis down to 10 microns. A greatly reduced spot size increases XRF X-ray elemental mapping capability and enhances trace analysis at the micron level.

Addition of an X-ray Source to the SEM brings:

  • INCREASE. Higher peak to background ratios enables greater elemental sensitivity for higher Z elements; sensitivity exceeding SEM-EDS by a factor of 10-1000x
  • IMPROVE. Increased beam stability, premium X-ray detectors and greater vacuum, yields higher accuracy when using standards making ppm level analysis a snap!
  • SEPARATE. Less complex handling of various peak overlaps
  • VALUE ADDED. Analysis of non-conductive materials without coating
  • VALUE ADDED. Integrated with EDS software for the most accurate low energy-high energy (full spectrum) analysis available

This is a picture of a 12 micron Ni grid X-ray map. The grid is imaged with a 10 micron “X-Beam” demonstrating 10 micron spatial resolution.

Combined EDS and XRF X-ray mapping bring previously unseen capability to the microscopist. Never before have the two been combined and made commercially available for the microanalyst.

EDS-XRF integrated acquisition

Combined Analysis

EDS

In order to acquire the most comprehensive and accurate full spectrum in seconds, use your EDS system to capture the light elements between 0-3kV; use the iXRF SEM-XRF tool to acquire the heavier, higher energy elements between 3-50kV.

Combined quantitation

In order to acquire the most comprehensive and accurate full spectrum in seconds, use your EDS system to capture the light elements between 0-3kV; use the iXRF SEM-XRF tool to acquire the heavier, higher energy elements between 3-50kV.

XRF

Acquire your full spectrum using one technique at a time or run in simultaneous mode. Acquire light and heavy elements using two techniques at the same sample location without ever opening the chamber.

Available quantitation routines

  • Auto
  • ZAF
  • FP
  • Least Squares
  • Match

Spectral collection & quantitation

XRF provides non-destructive analysis of various sample sizes and sample types including solids, environmental samples, powders and residues. Below are examples of common applications for traditional tabletop (bench top) XRF that are now available inside the SEM:

  • Art and Archeological
  • Chemical
  • Coatings and Thin Film
  • Cosmetic
  • Educational
  • Environmental
  • Food Applications
  • Forensics
  • Metal and Ore
  • Mineral and Mineral Products
  • Petroleum EDXRF
  • Pharmaceutical Applications
  • Plastics, Polymers, and Rubber
  • Plating and Plating Baths
  • Wood Treating
  • Concrete Treating
  • And Others

Mapping

Trace elemental mapping is possible for nearly all of the above applications. XRF mapping can be performed using either of our products; shown here by this mineral map using the X-Beam.

Increase Sensitivity

XRF can be used for trace spectral acquisition down to low PPM levels. XRF can be 10-1000 times more sensitive than SEM-EDS analysis, exemplified here by the greatly increased trace level peaks in the NIST SRM 610 glass standard.

Increase Sensitivity

XRF can be used for trace spectral acquisition down to low PPM levels. XRF can be 10-1000 times more sensitive than SEM-EDS analysis, exemplified here by the greatly increased trace level peaks in the NIST SRM 610 glass standard.

The IXRF SEM-XRF option, offers the ability to use both the electron beam and Micro-XRF beam simultaneously. With the electron beam at 3-5kV, only the light elements are excited. There is no significant background added to the XRF spectra, allowing all the elements in the sample to be seen.

Below are example maps of both excitation in “play”, on the same sample, at the same time! Never before has this ability been demonstrated.

Polycapillary Optics' Advantage

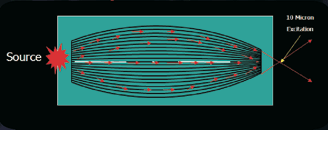

Polycapillary focusing optics collect a large solid angle of X-rays from an X-ray source and focus them to a spot as small as 10 µm. The X-ray flux density obtained is a few orders of magnitude higher than that obtained with a conventional pinhole collimator. The main application of these optics is micro X-ray fluorescence (µXRF) analysis, which has been widely used for thin film and plating analysis, precious metal evaluation, alloy measurement, and monitoring of electric circuit board coatings. Use of polycapillary focusing optics will significantly enhance the detection sensitivity and allow the high performance to be achieved with low-powered X-ray tubes. Micron-sized spatial resolution makes small feature evaluation possible for electronics and precious metal applications. Polycapillary optics offer 100x-10,000x gain with output focal spot sizes as small as 10 µm.
